Military-Grade
Aramid Anti-Drone Net – High-Strength Kevlar Drone Defense Netting
Military-grade aramid fiber anti-drone netting with ultra-high tensile strength, cut resistance, and weather durability for perimeter drone interception
Gallery
Military FOB Deployment
Border Security Installation

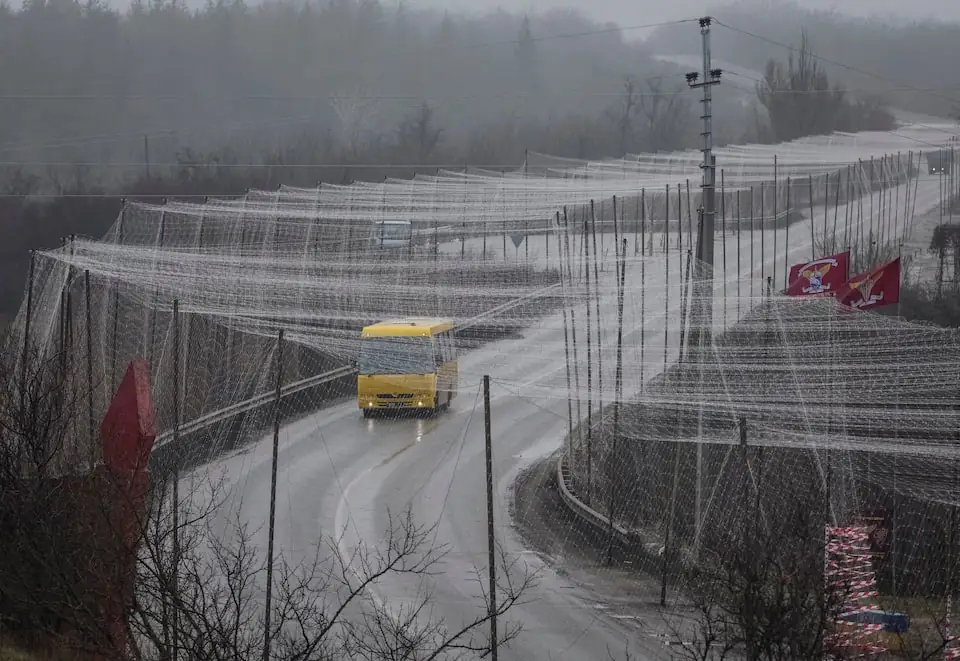

Critical Infrastructure Cover
Factory Quality ControlProduct Overview
Military-Grade Aramid Fiber Drone Interception Netting
The HD Aramid Anti-Drone Net represents the pinnacle of passive drone defense technology. Manufactured from high-tenacity aramid fibers — the same material used in ballistic body armor and aerospace composites — this netting delivers exceptional tensile strength of up to 3,500 N per strand while remaining lightweight and flexible for rapid deployment across any terrain or structure.
Unlike steel-based solutions, aramid fiber netting offers inherent corrosion resistance, non-conductive properties, and reduced weight — making it ideal for environments where radar signature, electrical safety, or load-bearing capacity are concerns. The 25 mm × 25 mm fine mesh opening ensures even the smallest commercial drones are effectively captured, while the material's self-extinguishing properties add an essential layer of fire safety for sensitive installations.
Each net panel is precision-manufactured with reinforced edges, stainless steel grommets, and UV-stabilized coating for extended outdoor service life. Available in standard and custom dimensions, the aramid net can be suspended between poles, mounted on building rooftops, or deployed as standalone interception curtains. With an operational temperature range of -50°C to +150°C and resistance to salt spray, UV radiation, and chemical exposure, this netting delivers reliable drone protection in the world's harshest environments.
Aramid fiber weave structure showing high-density drone interception mesh
Specifications
Technical Specifications
Aramid Anti-Drone Net Dimensional Diagram
Custom panel sizes available from 5 m × 5 m to 20 m × 20 m and beyond
Dimensiones
Standard panel: 10 m × 10 m. Weight: approx. 28 kg per panel. Custom dimensions from 1 m × 1 m to 50 m × 50 m available upon request. Delivered folded in waterproof packaging.
| Parameter | Value |
|---|---|
| Material | High-Tenacity Aramid Fiber (Kevlar® Equivalent, Para-Aramid 1414) |
| Tensile Strength | ≥ 3,500 N per strand (ISO 2307) |
| Mesh Opening | 25 mm × 25 mm (Square Pattern) |
| Net Weight | 280 g/m² (± 15 g/m²) |
| Operating Temperature | -50°C to +150°C (Continuous) |
| Rope Diameter | 3 mm – 8 mm Braided Aramid |
| Standard Panel Size | 5 m × 5 m / 10 m × 10 m / 20 m × 20 m (Customizable) |
| Edge Reinforcement | Double-Stitched Reinforced Border with Stainless Steel Grommets (Ø 12 mm) |
Features
Features & Benefits
Ultra-High Tensile Strength
Each aramid strand delivers ≥ 3,500 N tensile strength — five times stronger than steel at the same weight. The braided rope construction absorbs high-velocity drone impact without rupture, ensuring reliable capture.
Cut & Abrasion Resistant
Aramid fiber's molecular structure provides exceptional cut resistance. Drones attempting to cut through the net with onboard saws or heated wires find the material virtually impenetrable. The net also self-extinguishes upon contact with fire.
Lightweight & Rapid Deployment
At only 280 g/m², the aramid net is easily deployable by a two-person team without heavy equipment. Folds compactly for transport and can be installed on existing structures, poles, or suspended as a curtain system in under 2 hours.
All-Weather Durability
Functions flawlessly from -50°C to +150°C. UV-stabilized coating provides >5 years of continuous outdoor exposure resistance. Inherently resistant to salt spray, chemicals, and microbial degradation — ideal for marine, desert, and tropical environments.
Stealth & Non-Conductive
Available in camouflage colors and low-visibility black. The non-conductive aramid material produces zero radar reflection, maintaining stealth profiles at sensitive military installations. No electrical hazard near power infrastructure.
Applications
Where It's Installed
Military & Defense Installations
Stealth drone netting for forward operating bases and strategic military assets
Airport Perimeter & Runway Protection
Flight-safe non-conductive netting for airport and heliport drone defense
Government & Diplomatic Compounds
Low-profile netting for embassies, government buildings, and VIP residences
Critical Energy Infrastructure
Non-conductive netting for power plants, substations, and oil & gas facilities
